Discipline To top of page

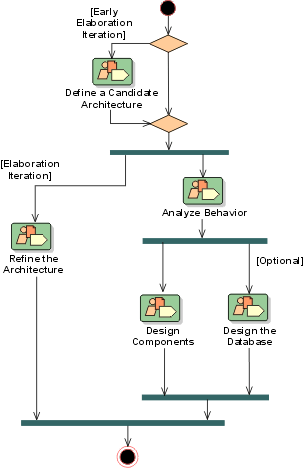

There are no major changes to the Analysis and Design Discipline - real time design has been removed (see the RUP Overview: Analysis and Design for the full RUP discipline).


Artifacts To top of page

Artifacts How to use Review Details Tools Used/ Templates/
Examples
Incep Elab Const Trans
Analysis Model *1 Could  Should Won't Won't Formal-
Internal		 Template: Analysis Model
Data Model Could  Must Must Must Formal-
Internal		 Template: Data Model
Deployment Model Could  Must Must Must Formal-
Internal		 Template: Deployment Model
Design Model Could  Must Must Must Formal-
Internal		 Template: Design Model

Analysis Class *2

 Could  Should Could  Won't Informal Embedded.

Design Class

 Could  Must Must Must Informal  Embedded.

Design Package

 Could  Must Must Must Formal-
Internal		 Embedded.

Design Subsystem

 Could  Must Must Must Formal-
Internal		 Embedded.

Interface

 Could  Must Must Must Formal-
Internal		 Embedded.

Use-Case Realization *3

 Could  Must Must Must Formal-
Internal		 Embedded.
Reference Architecture Could  Could  Could  Could  Formal-
External		 Uses SAD template see Template: Software Architecture Document
Software Architecture Document (SAD) Could  Must Must Must Formal-
External		 Template: Software Architecture Document

Notes on the ArtifactsTo top of page

  • Note 1: The analysis model is a temporary artifact containing analysis classes that have yet to be allocated / integrated into the Design Model.
  • Note 2: During Inception and Elaboration analysis classes may be part of the Analysis Model.  As the design is taken forward the analysis classes will be integrated into the Design Model and matured into design elements.  During Construction analysis classes may still be used when performing use case analysis but the analysis model itself will no longer be in use.
  • Note 3: Use-case realizations may also be part of the analysis model.
    •

    The following RUP artifacts are not used:

    Artifact How To Use Clarification
    Capsule Won't Real time systems are not being developed.
    Event Won't Real time systems are not being developed.
    Protocol Won't Real time systems are not being developed.
    Signal Won't Real time systems are not being developed.

    Reports To top of page

    Reports How to Use Tools Used/ Templates/ Examples
    Class Report Could - Casual - a work report Template- Class Report
    Design-Model Survey Should - Use for review purposes as needed.

    Template- Design Model Survey
    Design Package / Sub-system Should - Use for review purposes as needed. Template- Design Package / Sub-system Report
    Use-Case Realization Should - Use for review purposes as needed. Template- Use-Case Realization Report

    Notes on the ReportsTo top of page

    None.

    Additional Review Procedures To top of page

    None.

    Other Issues To top of page

    None.

    Configuring The DisciplineTo top of page

    When configuring the Analysis and Design Discipline help can be found in:

    You should also familiarize yourself with:
